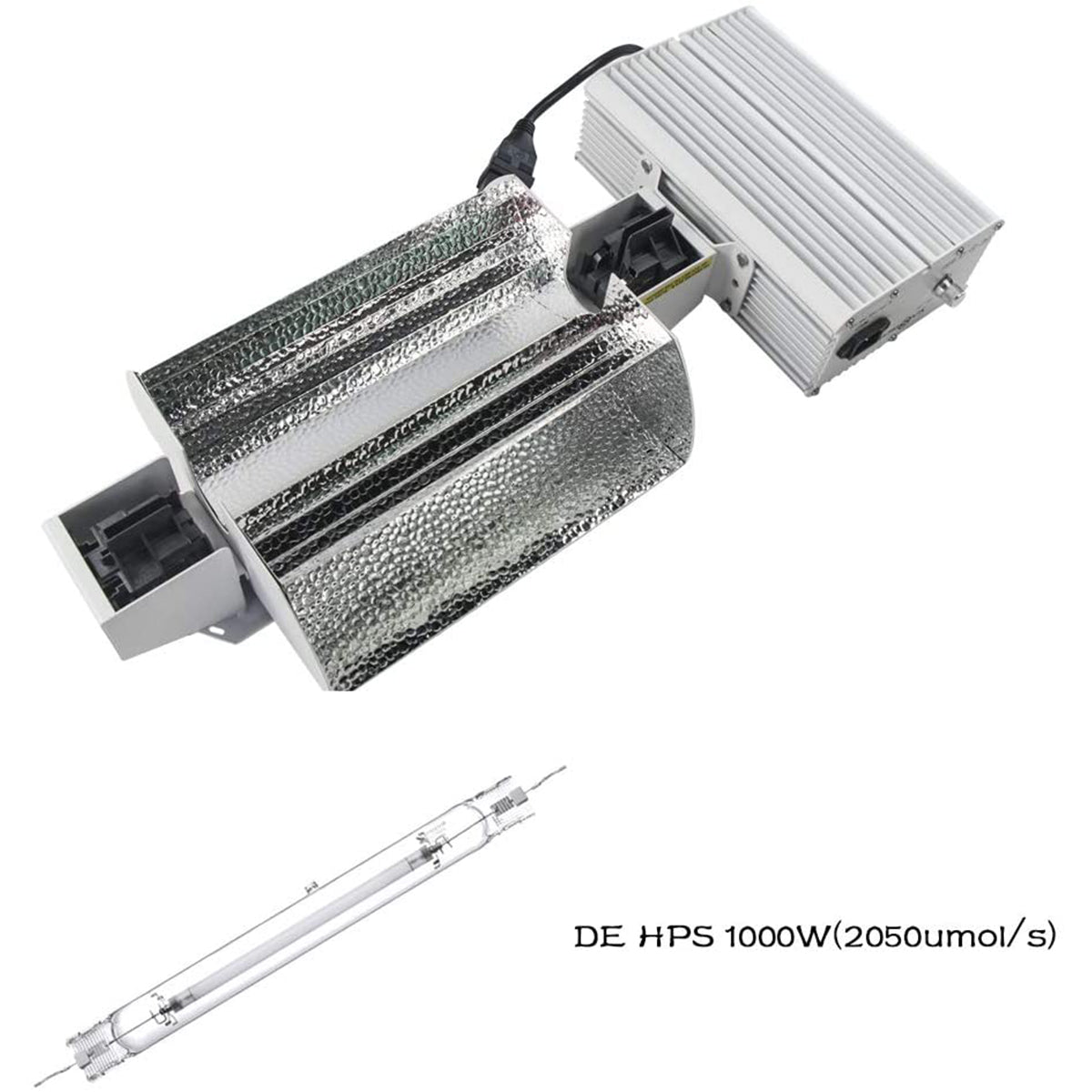

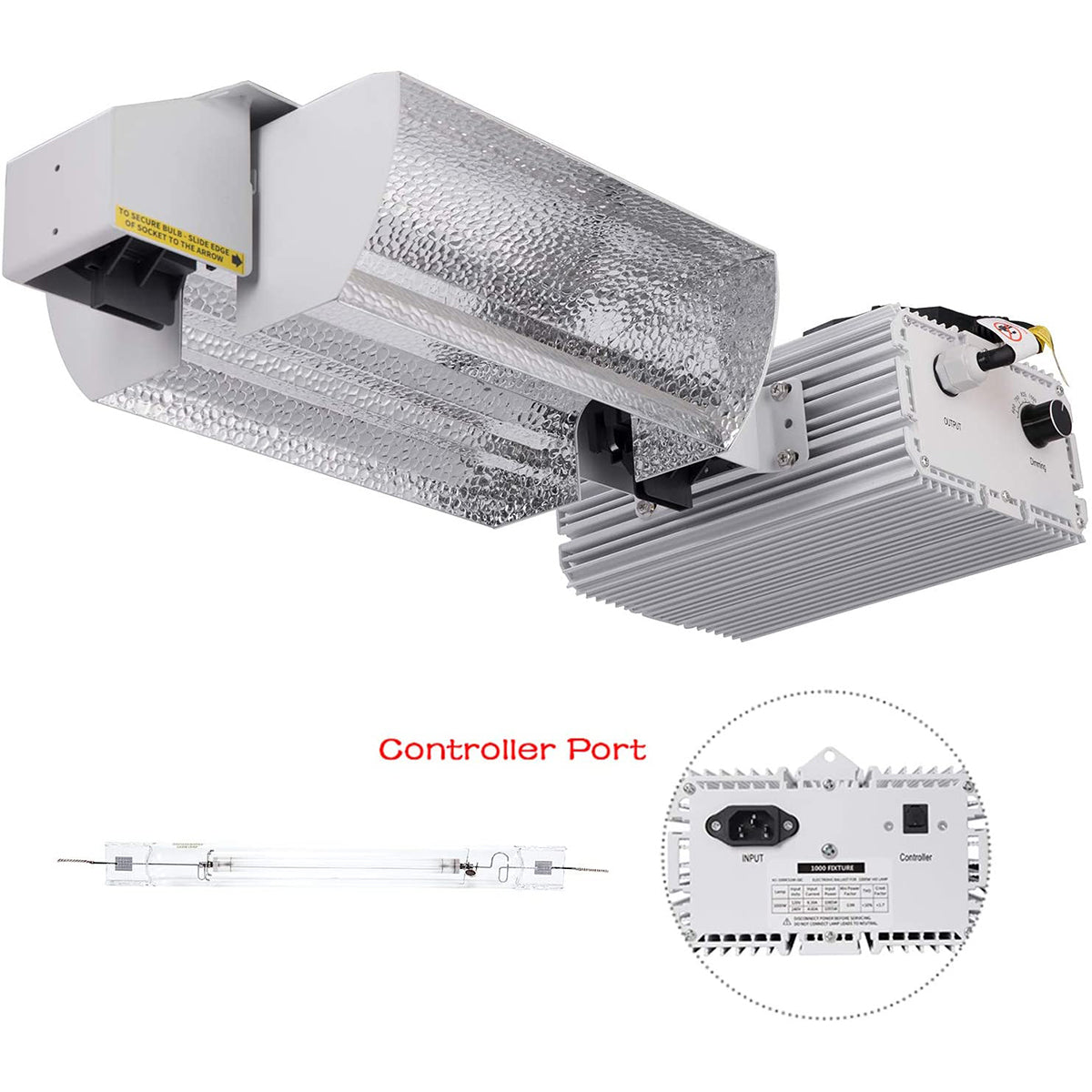

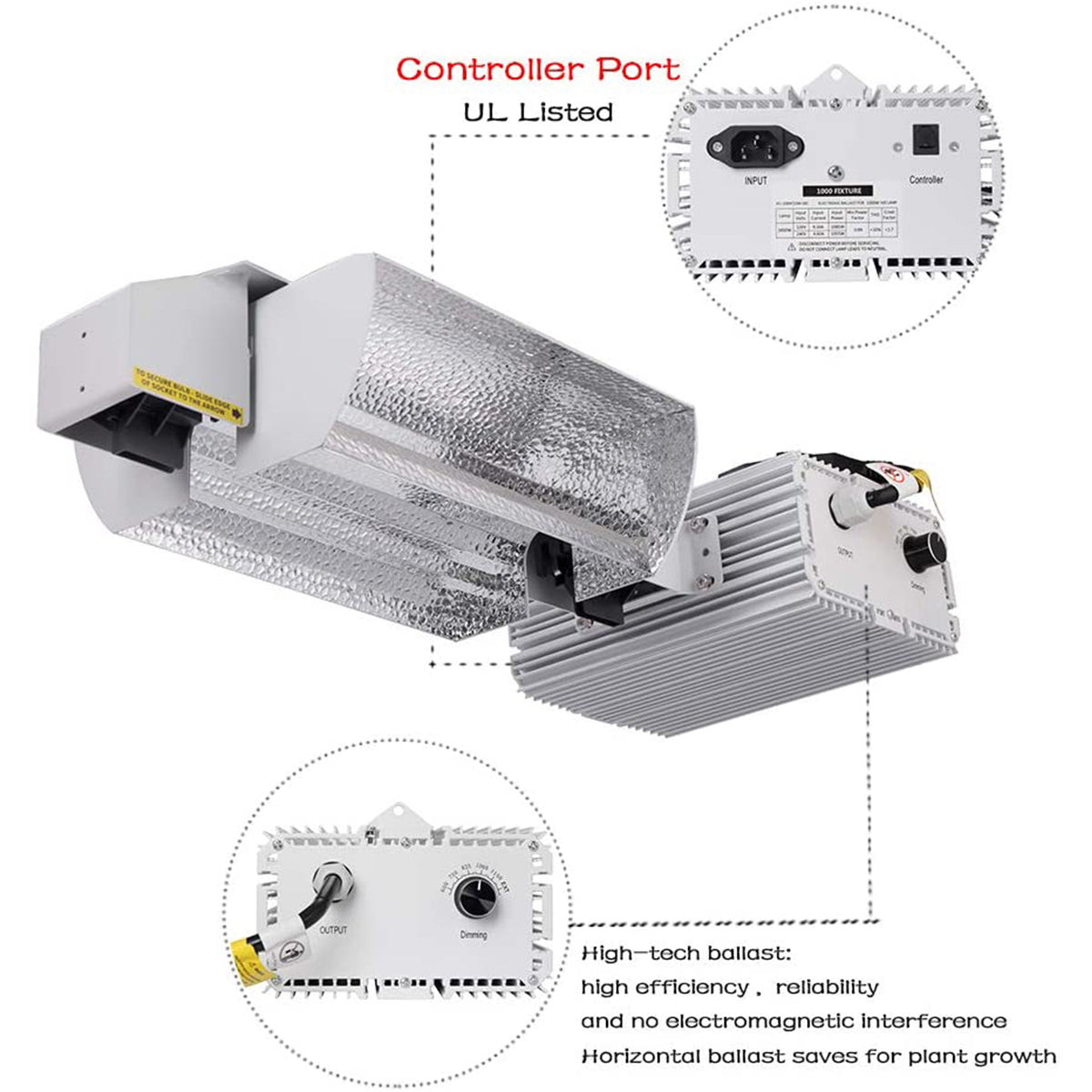

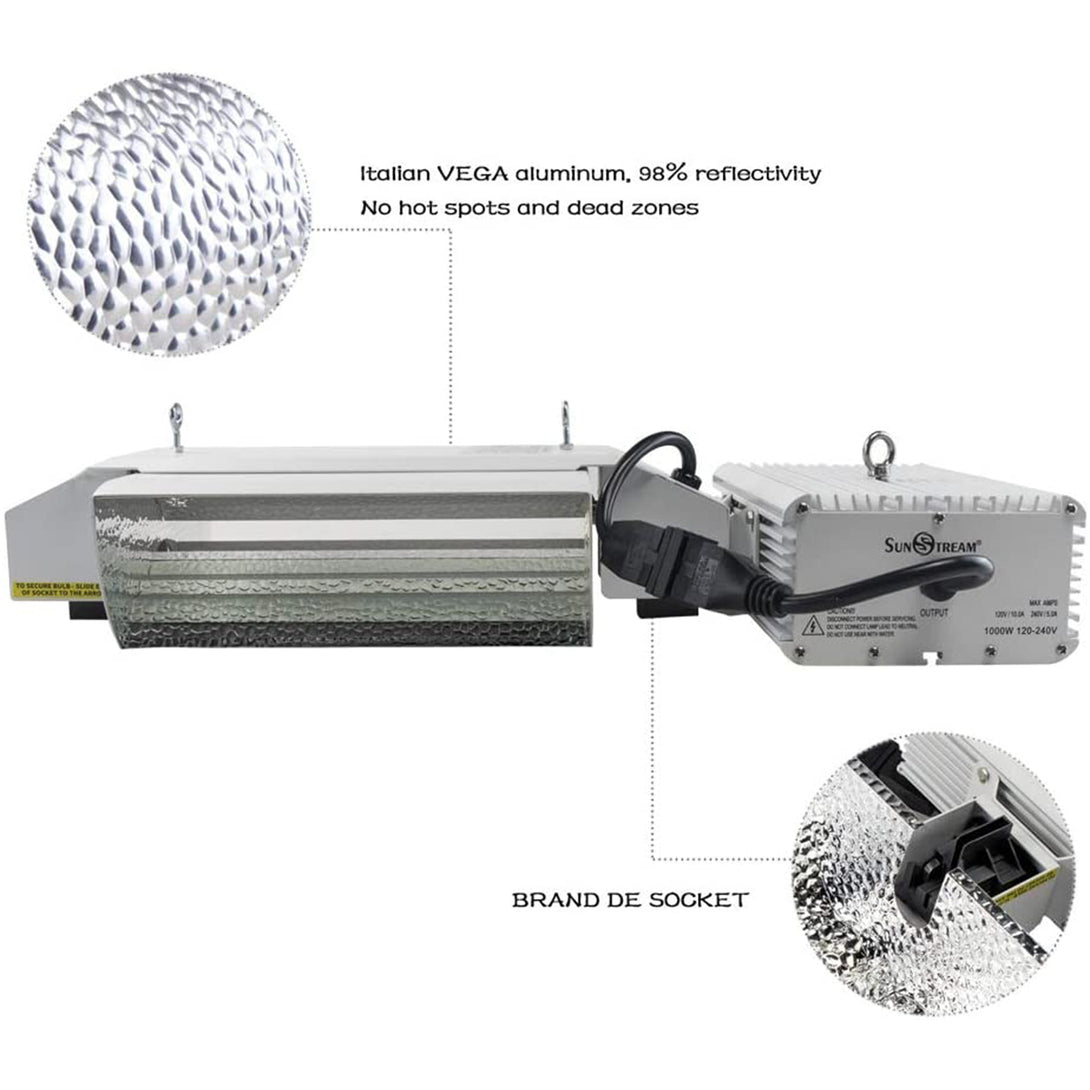

- Open style with controller port
- High Quality - this DE fixture is certified by ETL. The production of each machine is subject to strict inspection standards, high-quality German materials and superb manufacturing processes to ensure the durability and safety of the HPS system.
- Adjustable Power - This complete fixture includes a built-in 120v/240v 1000w adjustable high-frequency ballast for running double-ended lamps. This ballast was designed with dimming features which could match different wattage lamps on the same ballast.
- Self-Protection Mechanism - When the grow HPS system is at a dangerous input or output voltage, the protection mechanism is activated, and the machine is automatically stopped to avoid damage to the machine or pose a threat to the human body.
- Automatic Cooling - Inner heats will dissipate through the case. When the case temperature rises up to 85℃, the ballast will gradually reduce power to 80%; When the case temperature reaches to 90℃, the ballast will stop working until cool down to 70℃, then returns to full power status. Protect the machine from damage due to excessive temperature.
- Satisfactory Service - Ballast and reflector have a 3-year warranty and the bulb has a 1-year warranty. If you have any concerns about the hydroponic and greenhouse plant HPS system packaging problem with product damages, please don’t hesitate to contact us. We will try our best to answer your questions in order to provide quality service and a great purchasing experience.
- Follow us on instagram: sunstreamballast
Notice: The package of this product will contain ballast picture on it, add a note if you need a generic box.

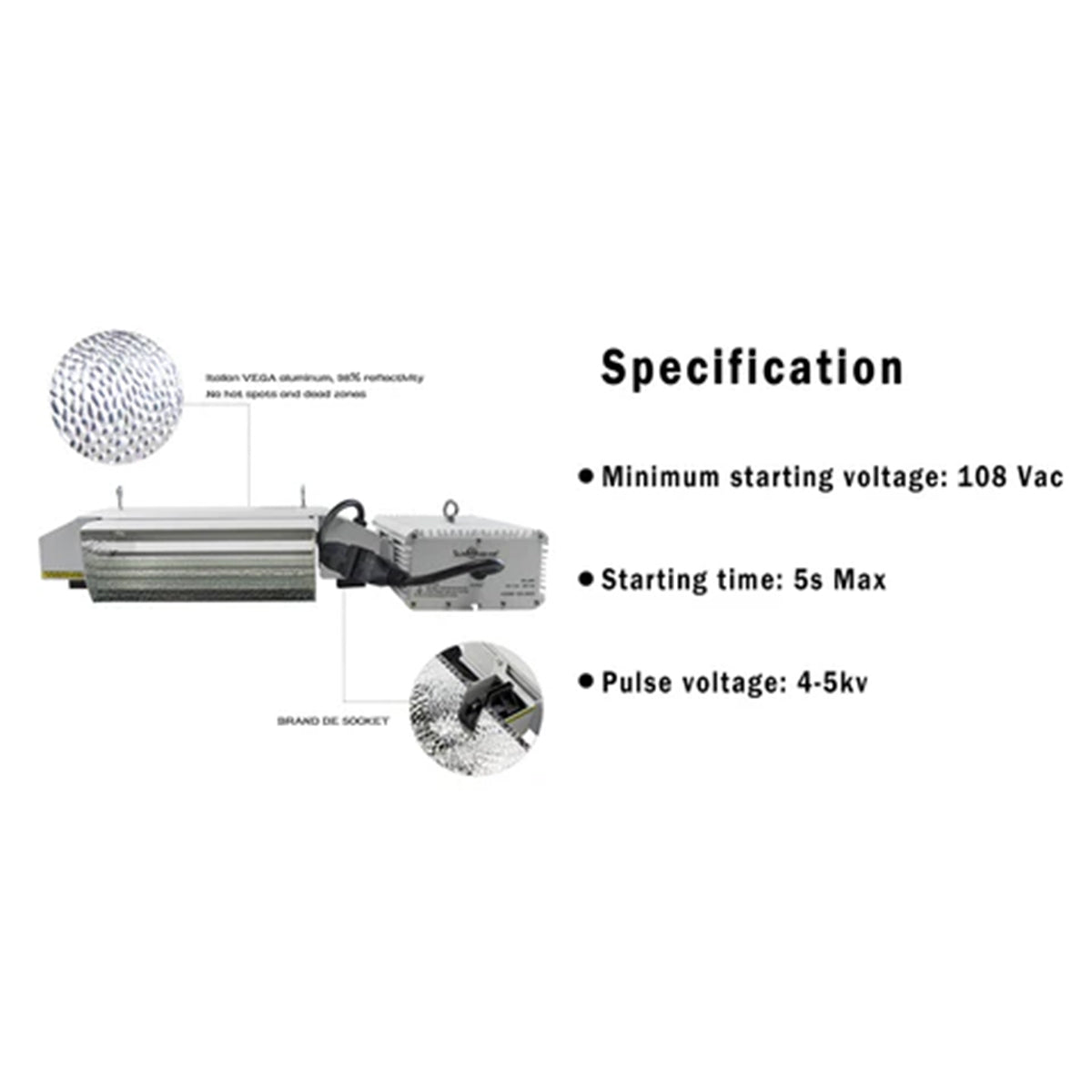

Minimum starting voltage: 108 Vac
Starting time: 5s Max
Pulse voltage: 4-5kv

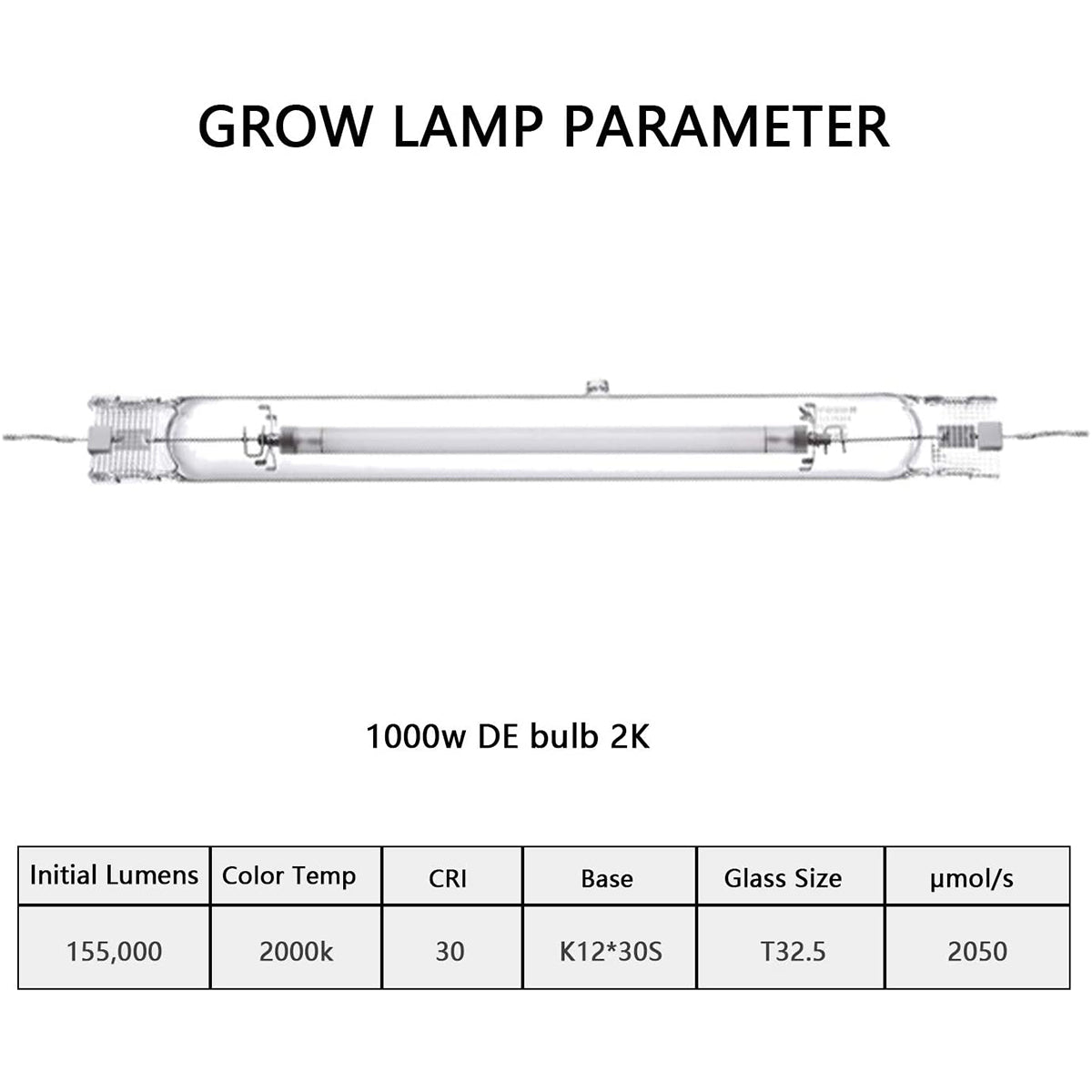

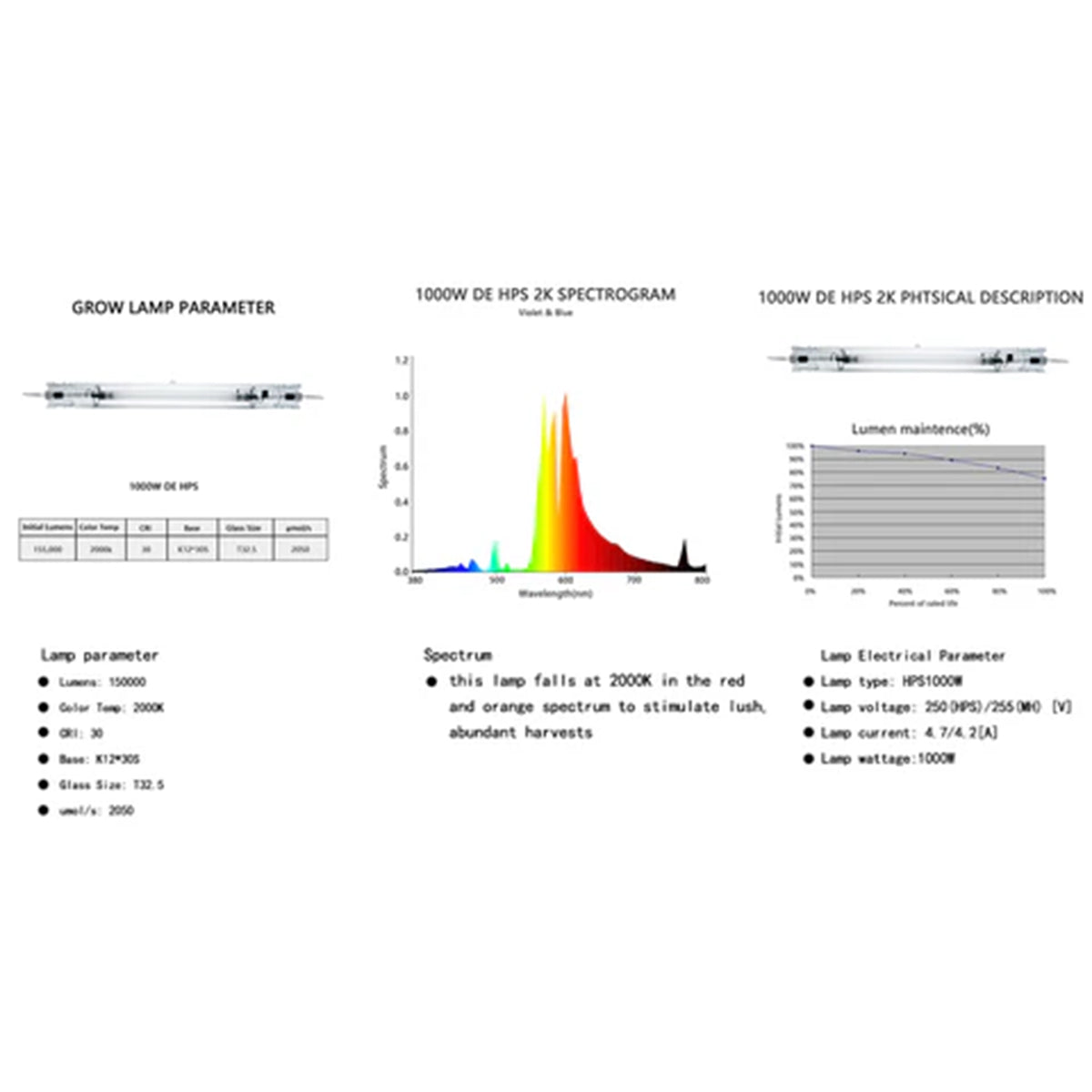

Lamp Electrical Parameter

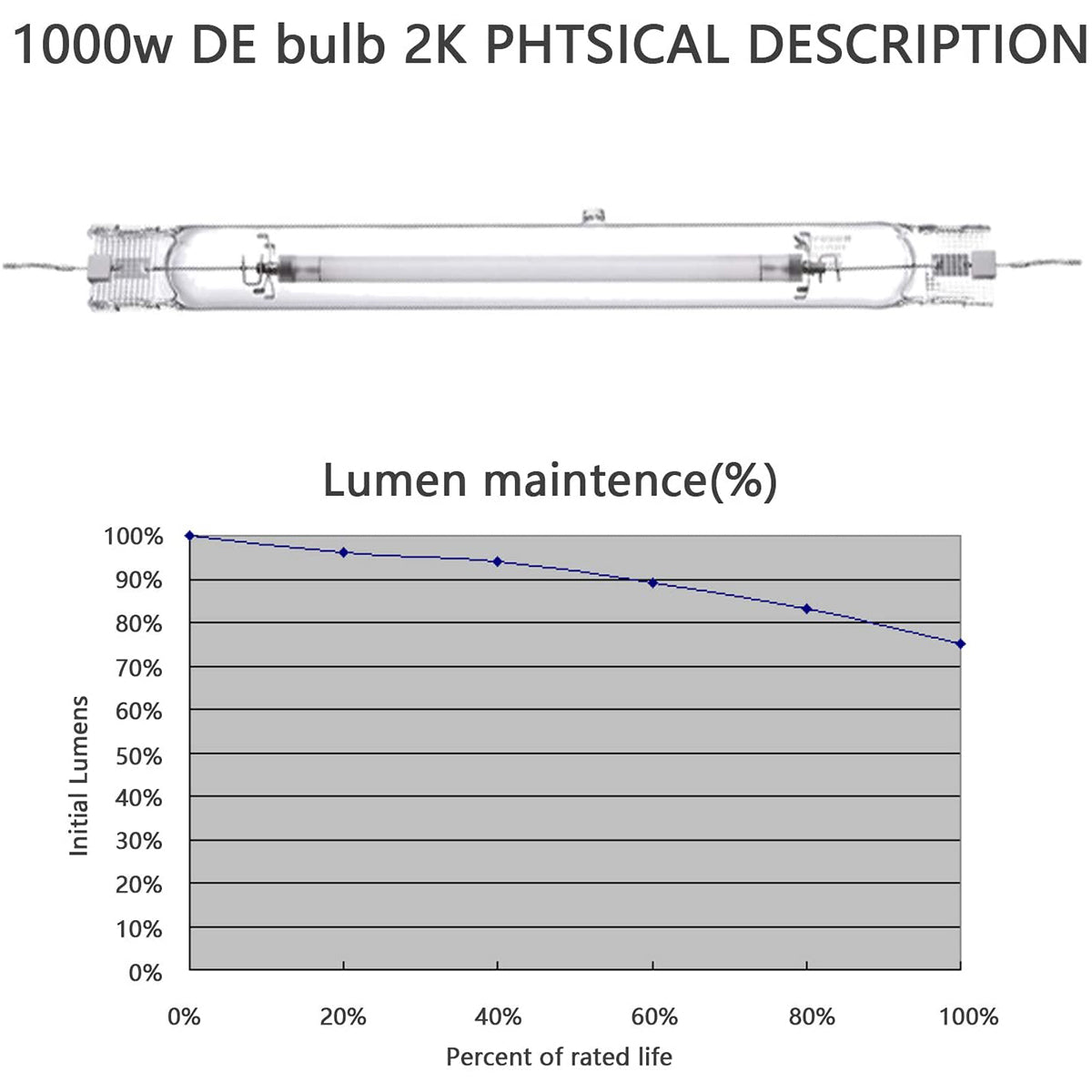

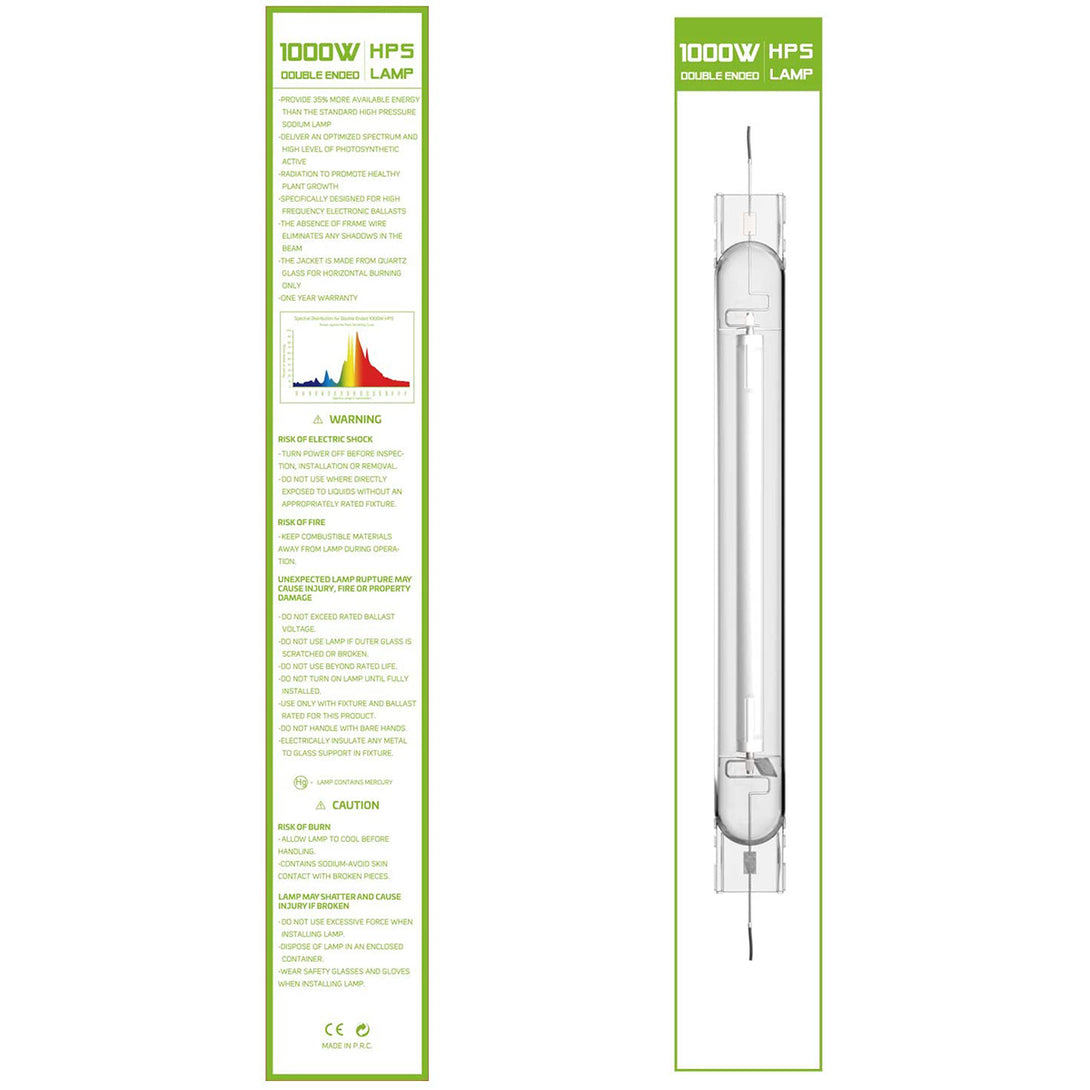

Lamp type: HPS1000W/MH1000W
Lamp voltage: 250(HPS)/255(MH) [V]
Lamp current: 4.7/4.2[A]

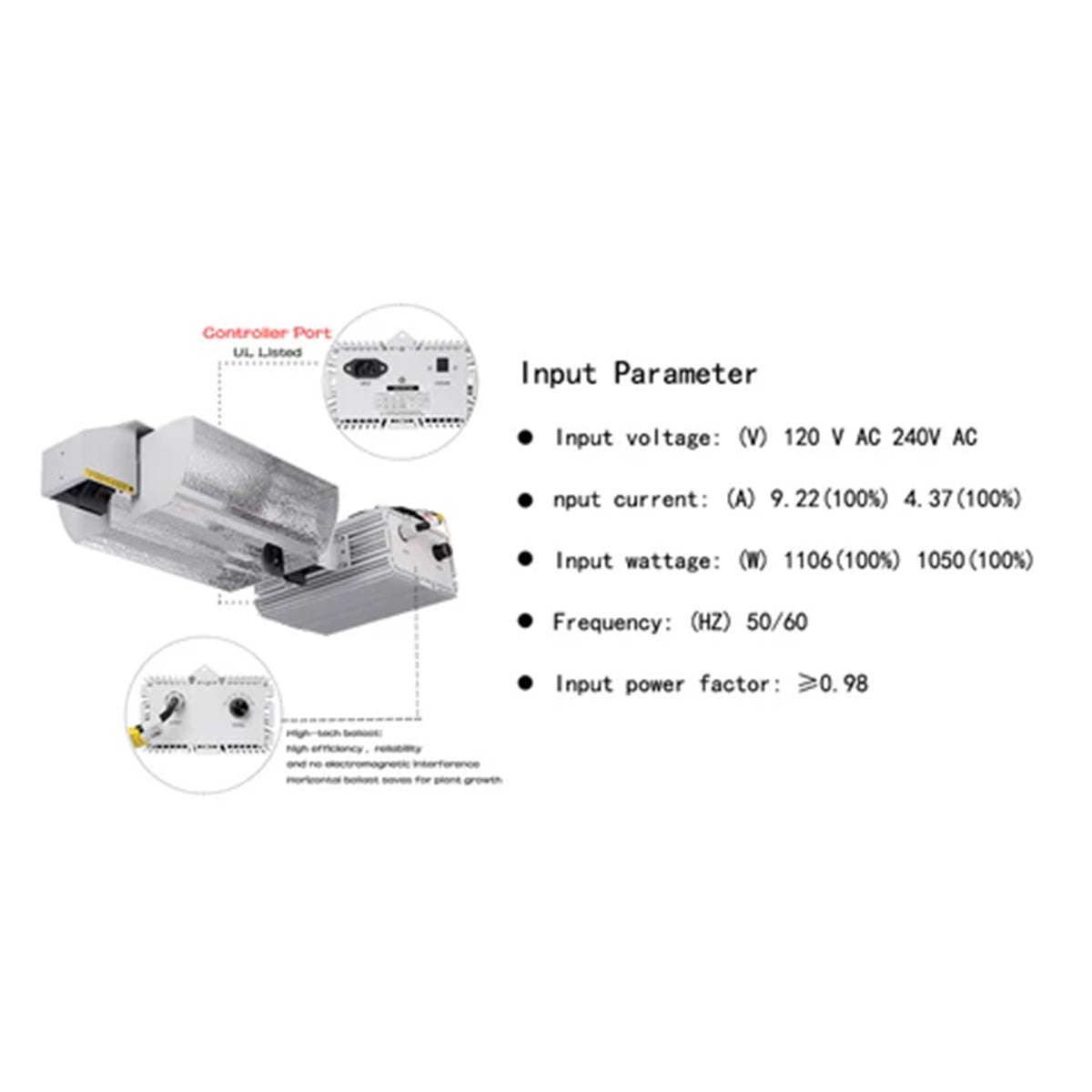

Input voltage: [ V] 120 V AC 240V AC
Input current: [A] 9.22(100%) 4.37(100%)
Input wattage: [W] 1106(100%) 1050(100%)
Frequency: [HZ] 50/60
Input power factor: [ cosΦ] ≥0.98
THD: [ %] ≤10 Plug interface model(Input end): DB-14
Rated frequency: [kHz] 107-150
Open Circuit Voltage: [V] ≤400
Dimming range: 600w 750w 1000w 1150w
Wave crest ratio: [Ω] ≤1.7
Efficiency: [ %] ≥93
Plug interface model(output end): XM02
Outer case temperature[°C]: 75 Max.
Average lifetime[H]: 30000 <br>5.3 Ambient temperature[°C]: -75
